Air Duct For Defrost Air Vent, Removing And Installing: Removing

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

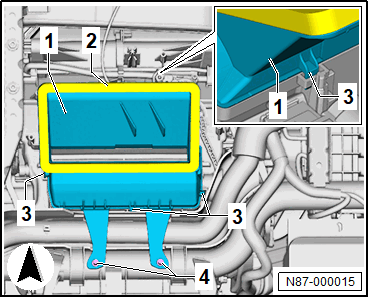

-- Remove the expanding rivets -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unhook the air duct for the defrost air vent -1- from the catches -3- and remove it upward.
