Right Air Distribution Door Adjuster, Removing And Installing: Removing

To prevent the interchanging of the actuators, mark the position of the actuators and the connector before removing.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the Right Front Temperature Control Door -VX35-. Refer to Actuator for Right Front Temperature Control Door -VX35-, Removing and Installing  .

-- Remove the Right Front Air Distribution Door -VX94-. Refer to Actuator for Right Front Air Distribution Door -VX94-, Removing and Installing  .

-- Free up the wire the wire.

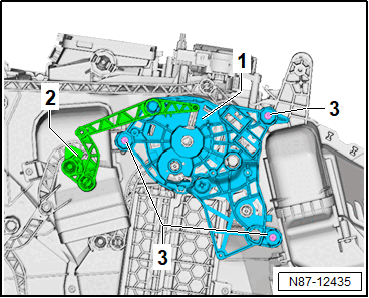

-- Remove the operating lever -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

-- Remove the adjuster for air distribution doors -2-.
