Left Air Distribution Door Adjuster, Removing And Installing: Removing

To prevent the interchanging of the actuators, mark the position of the actuators and the connector before removing.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the Left Front Temperature Control Door -VX34-. Refer to Actuator for Left Front Temperature Control Door -VX34-, Removing and Installing  .

-- Remove the Left Front Air Distribution Door -VX34-. Refer to ACTUATOR FOR LEFT FRONT TEMPERATURE CONTROL DOOR -VX34-, REMOVING AND INSTALLING  .

-- Free up the wire the wire.

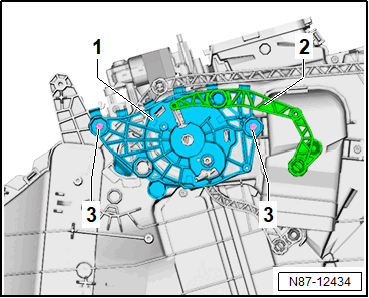

-- Remove the operating lever -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

-- Remove the adjuster for air distribution doors -1-.
