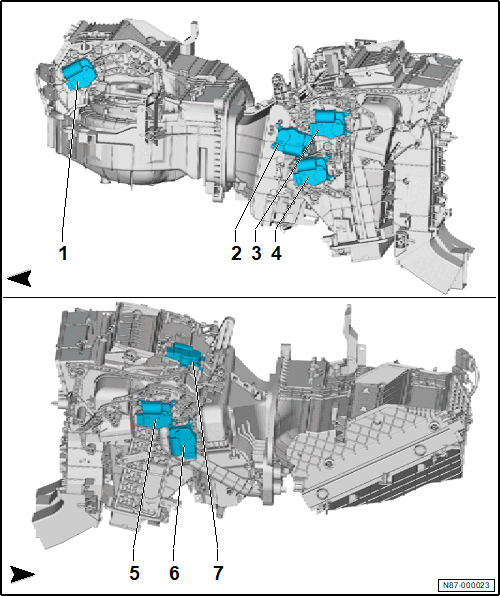

Component Location Overview - Front Actuators
- Actuator for Fresh and Air Recirculation Door -VX96-
- With Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
- With the Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor -G644-
- Refer to Actuator for Fresh and Air Recirculation Door -VX96-, Removing and Installing .
- Actuator for Left Front Temperature Control Door -VX34-
- With Left Temperature Control Door Motor -V158-
- With the Left Temperature Control Door Position Sensor -G220-
- Refer to Actuator for Left Front Temperature Control Door -VX34-, Removing and Installing .
- Actuator for Left Front Air Distribution Door -VX93-
- With Left Front Air Distribution Door Motor -V706-
- With Left Front Air Distribution Door Motor Position Sensor -G1105-
- Refer to Actuator for Left Front Air Distribution Door -VX93-, Removing and Installing .
- Actuator for Rear Temperature Control Door -VX95-
- Depending on vehicle equipment/version
- With Rear Temperature Control Door Motor -V137-
- With the Rear Temperature Control Door Motor Position Sensor -G479-
- Refer to Actuator for Rear Temperature Control Door -VX95-, Removing and Installing .
- Actuator for Right Front Air Distribution Door -VX94-
- With Right Front Air Distribution Door Motor -V707-
- With Right Front Air Distribution Door Motor Position Sensor -G1106-
- Refer to Actuator for Right Front Air Distribution Door -VX94-, Removing and Installing .
- Actuator for Right Front Temperature Control Door -VX35-
- With Right Temperature Control Door Motor -V159-
- With Right Temperature Control Door Position Sensor -G221-
- Refer to Actuator for Right Front Temperature Control Door -VX35-, Removing and Installing .
- Actuator for Defroster Door -VX47-
- With Defroster Door Motor -V107-
- With the Defroster Door Motor Position Sensor -G135-
- Refer to Actuator for Defroster Door -VX47-, Removing and Installing .
