A/C Compressor VX81, Removing And Installing On Bracket: Removing

-- Remove the A/C Compressor -VX81-. Refer to A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING, R744  or A/C COMPRESSOR -VX81-, REMOVING AND INSTALLING, R1234YF  .

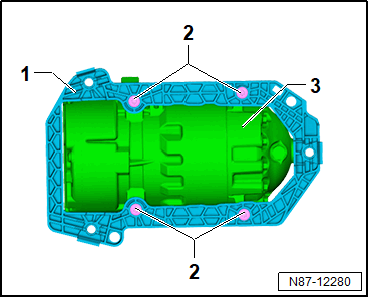

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the A/C compressor -3- from the bracket -1-.
