Left Front Entry Lamp -W31- /Right Front Entry Lamp -W32-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

CAUTION:

Risk of damaging the component surfaces.

When positioning a prying tool, put commercially available adhesive tape over the component in the visible area.

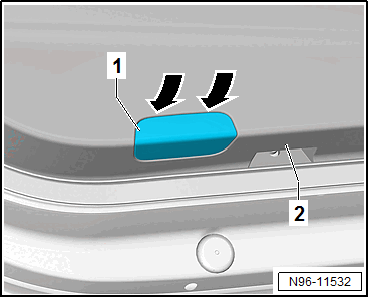

-- Pry out the entry lamp -1- carefully using the Trim Removal Wedge:3409 or a screwdriver from the door trim panel -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector on the entry lamp -1-.

-- Remove the entry lamp. Refer to Left Front Entry Lamp -W31- /Right Front Entry Lamp -W32-, REMOVING AND INSTALLING .

-- Release the diffusion lens carefully out of the housing -arrows-.

Fig 1: Identifying Prying Off Diffusion Lens

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bulb -1- upward in the -direction of the arrow- straight out of the socket.

Fig 2: Identifying Lamp Removed From Socket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
