Instrument Panel Contour Illumination Lamp 2 -L244- /Instrument Panel Contour Illumination Lamp 3 -L245-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Instrument Cluster -KX2-. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .

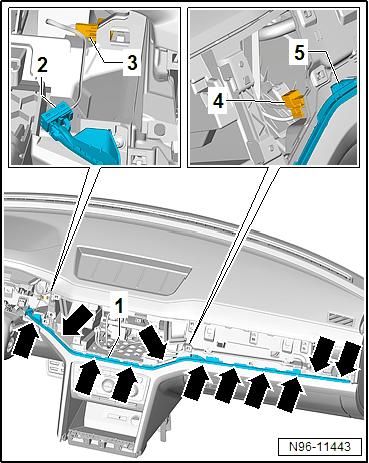

-- Release and disconnect the connector -3- behind the Instrument Cluster -KX2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wiring harness for the Instrument Panel Contour Illumination Lamp 2 -L244- -2-.

-- Release and disconnect the connector -4- behind the instrument panel.

-- Free up the wiring harness for the Instrument Panel Contour Illumination Lamp 3 -L245- -5-.

-- Carefully unclip the Instrument Panel Contour Illumination Lamp 2 -L244- /Instrument Panel Contour Illumination Lamp 3 -L245- -1- from the instrument panel -arrows-.
