Instrument Panel Contour Illumination Lamp 1 -L243-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Instrument Cluster -KX2-. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .

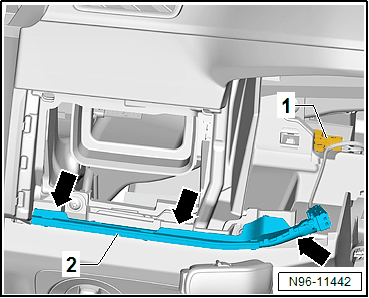

-- Release and disconnect the connector -1- behind the Instrument Cluster -KX2-.
-- Free up the wiring harness for the Instrument Panel Contour Illumination Lamp 1 -L243- -2-.
-- Unclip the Instrument Panel Contour Illumination Lamp 1 -L243- -2- carefully from the driver side instrument panel cover -arrows-.
