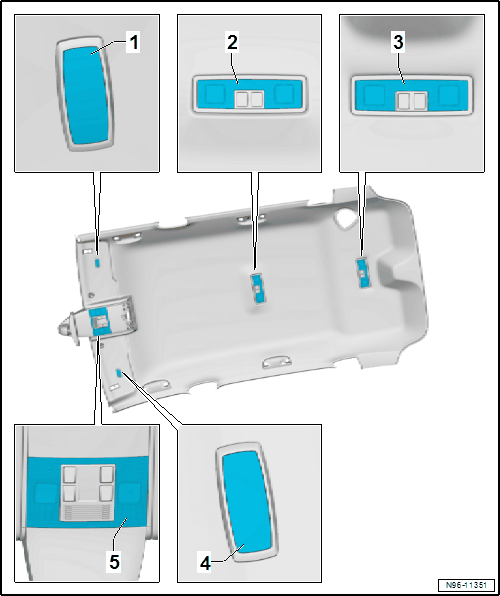

Component Location Overview - Roof Trim Panel Lamps, Vehicles Without Panorama Roof
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Vanity Mirror Lamp -W20-
- If the vanity mirror lamp is equipped with LEDs, the lamp must be replaced if faulty.
- Removing and installing. Refer to Driver Vanity Mirror Lamp -W20- /Front Passenger Vanity Mirror Lamp -W14-, REMOVING AND INSTALLING .
- Rear Interior Lamp -WX2-
- With Left Rear Reading Lamp -W11- /Right Rear Reading Lamp -W12-
- Removing and installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITHOUT PANORAMA ROOF .
- Bulb for Rear Interior Lamp -W43-, Removing and Installing. Refer to BULB FOR Rear Interior Lamp -W43-, REMOVING AND INSTALLING .
- Bulb for Left Rear Reading Lamp -W11- /Right Rear Reading Lamp -W12-, Removing and Installing. Refer to Left Rear Reading Lamp -W11- /Right Rear Reading Lamp -W12-, REMOVING AND INSTALLING .
- Interior Lamp -W64-
- For the third row
- with Left Third Row Reading Lamp -W94- /Right Third Row Reading Lamp -W95-
- Removing and installing the bulb for the Interior Lamp -W64-. Refer to Interior Lamp -W64- BULB, REMOVING AND INSTALLING .
- Bulb for Left Third Row Reading Lamp -W94- /Right Third Row Reading Lamp -W95-, Removing and Installing. Refer to Left Third Row Reading Lamp - W94- /Right Third Row Reading Lamp - W95-, REMOVING AND INSTALLING .
- Front Passenger Vanity Mirror Lamp -W14-
- If the vanity mirror lamp is equipped with LEDs, the lamp must be replaced if faulty.
- Removing and installing. Refer to Driver Vanity Mirror Lamp -W20- /Front Passenger Vanity Mirror Lamp -W14-, REMOVING AND INSTALLING .
- Front Interior Lamp -WX1-
- With Left Front Reading Lamp -W65- /Right Front Reading Lamp -W66-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Bulb for Front Interior Lamp -W1-, Removing and Installing. Refer to BULB FOR Front Interior Lamp -W1-, REMOVING AND INSTALLING .
- Bulb for Left Front Reading Lamp -W65- /Right Front Reading Lamp -W66-, Removing and Installing. Refer to Left Front Reading Lamp -W65- AND Right Front Reading Lamp -W66-, REMOVING AND INSTALLING .
