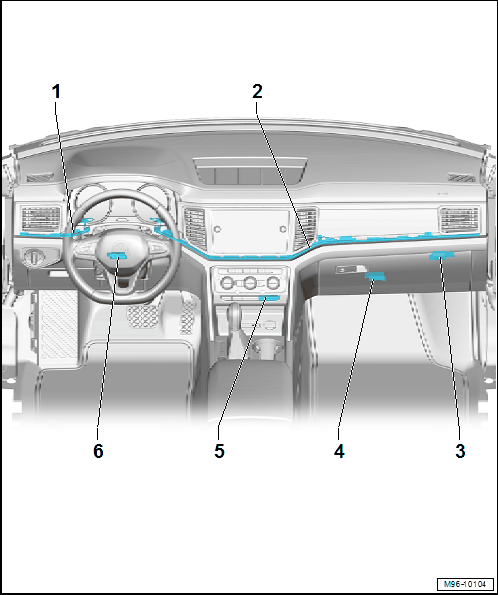

Component Location Overview - Instrument Panel Lamps
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Panel Contour Illumination Lamp 1 -L243-
- In the outer driver side instrument panel
- Removing and installing. Refer to Instrument Panel Contour Illumination Lamp 1 -L243-, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 2 -L244- /Instrument Panel Contour Illumination Lamp 3 -L245-
- Instrument Panel Contour Illumination Lamp 2 - L244- in the center instrument panel
- Instrument Panel Contour Illumination Lamp 3 - L245- in the front passenger side instrument panel
- Instrument Panel Contour Illumination Lamp 2 -L244- and Instrument Panel Contour Illumination Lamp 3 -L245- are integrated in a shared component
- Removing and installing. Refer to Instrument Panel Contour Illumination Lamp 2 -L244- /Instrument Panel Contour Illumination Lamp 3 -L245-, REMOVING AND INSTALLING .
- Glove Compartment Lamp -W6-
- Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
- Right Front Footwell Lamp -K269-
- Removing and installing. Refer to Left Front Footwell Lamp -K268- /Right Front Footwell Lamp -K269-, REMOVING AND INSTALLING .
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Integrated in the Center Console Switch Module 1 -EX23-
- Center Console Switch Module 1 -EX23-, Removing and Installing. Refer to Center Console Switch Module 1 -EX23-, REMOVING AND INSTALLING .
- Left Front Footwell Lamp -K268-
- Removing and installing. Refer to Left Front Footwell Lamp -K268- /Right Front Footwell Lamp -K269-, REMOVING AND INSTALLING .
