Third Row Interior Lamp/Reading Lamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The buttons are a permanent component of the Interior Lamp -W64- and cannot be removed separately.
The Interior Lamp -W64- is held in place by a dual-stage locking mechanism.

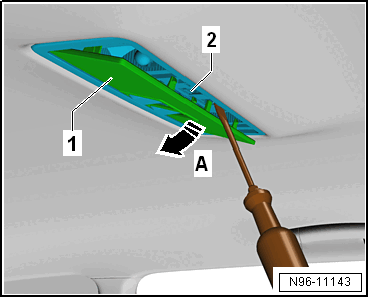

-- Pry out the diffusion lens -1- in the -direction of the arrow A- using a narrow screwdriver, for example.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the diffusion lens -1- from the Interior Lamp -W64- -2-.

-- Release the catches -2- in the -direction of the arrow A- using a narrow screwdriver, for example.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the locking mechanism -1- in the -direction of the arrow B-.

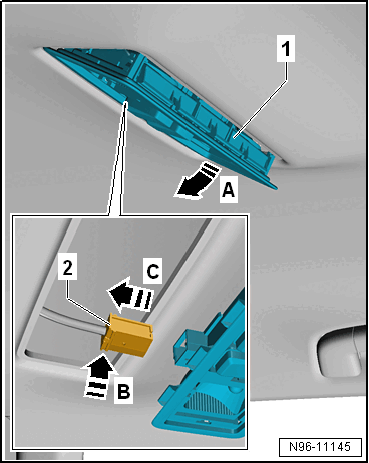

-- Remove the Interior Lamp -W64- -1- out of the roof opening in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the connector lock in the -direction of the arrow B- and disconnect the connector in the -direction of the arrow C-.
