Third Row Interior Lamp/Reading Lamp, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
CAUTION:
The connector must point in the direction of travel.

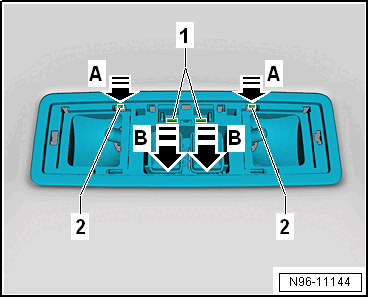

-- Push the locking mechanism -1- opposite the -direction of the arrow B-. The catches -2- must engage securely.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Perform a function test.
