Sunroof Button -E325-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Front Interior Lamp -WX1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

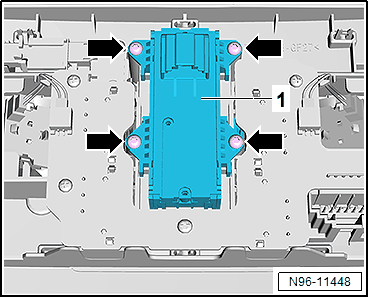

GWWN96-11448Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Sunroof Button -E325- -1- from the Front Interior Lamp -WX1-.
