Start System Button -E378-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the selector lever handle with shift cover. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

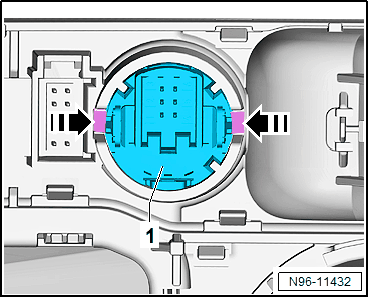

-- Release the clip on the Start System Button -E378- -1- in the -direction of the arrow-.

GWWN96-11432Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Start System Button -E378- -1- upward from the shift cover.
