Rotary Light Switch -EX1-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch into neutral position.

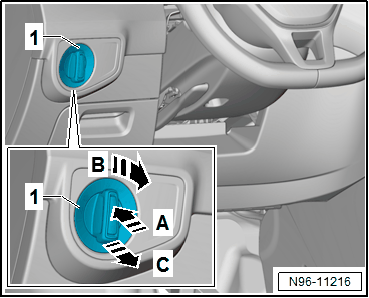

-- Push the rotary handle -1- in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the rotary handle -1- in the -direction of the arrow B-.

-- Hold the rotary handle -1- in this position.

-- Remove the Rotary Light Switch -EX1- from the instrument panel in the -direction of the arrow C-.

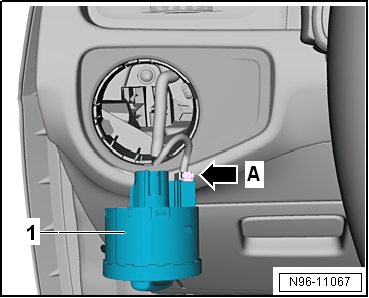

-- Release and disconnect the connectors -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Rotary Light Switch -EX1- -1-.
