Roof Shade Button 1 -E584-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Front Interior Lamp -WX1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
-- Remove the headliner storage compartment. Refer to HEADLINER STORAGE COMPARTMENT, REMOVING AND INSTALLING .

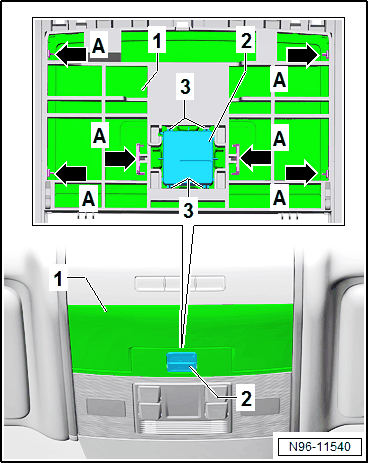

-- Release the retainers -A arrows- on the trim -1-.
-- Remove the trim -1- downward from the headliner compartment.
-- Release the catches -3- on the headliner compartment.
-- Remove the Roof Shade Button 1 -E584- -2- downward from the headliner compartment.
