Rear Lid Lock Button in Luggage Compartment -E406-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Risk of damaging the component surfaces.

When positioning a prying tool, put commercially available adhesive tape over the component in the visible area.

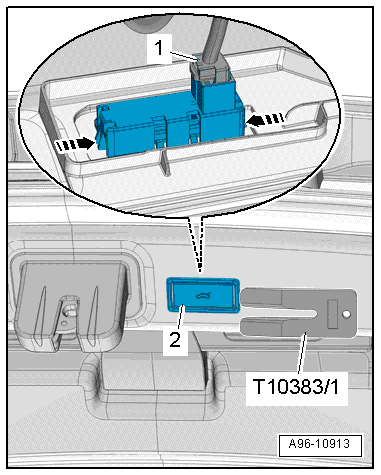

-- Release the catches -arrows- on the Rear Lid Lock Button in Luggage Compartment -E406- -2- using the Wedge Set :T10383/1 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Rear Lid Lock Button in Luggage Compartment -E406- -2- from the rear lid lower trim panel.

-- Release and disconnect the connector -1-.

If the Rear Lid Lock Button in Luggage Compartment -E406- cannot be removed as described, then:

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Unclip the Rear Lid Lock Button in Luggage Compartment -E406- from the rear lid lower trim panel from the inside.
