Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the button trim from the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

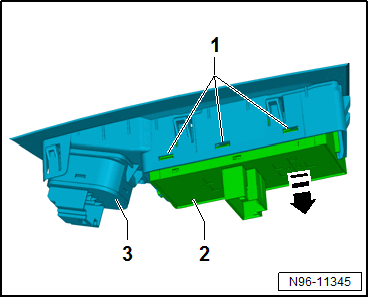

-- Release the catches -1- on both sides using a small screwdriver.
-- Remove the Power Window Control Head in Driver Door -E512- -2- in the -direction of the arrow- from the button trim -3-.
