Front Interior Lamp/Reading Lamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

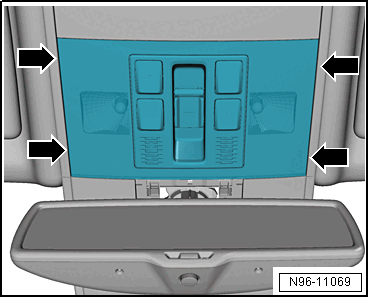

-- Using the Trim Removal Wedge:3409 , pry the diffusion lens off the Front Interior Lamp -WX1- in the areas marked by -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, release and disconnect the connectors.

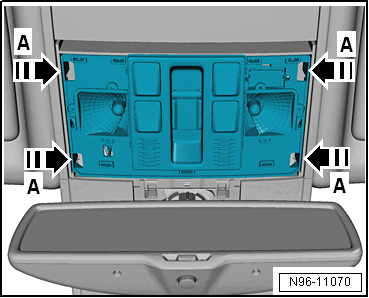

-- Push the catches in the -direction of the arrow A- and remove the Front Interior Lamp -WX1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors.
