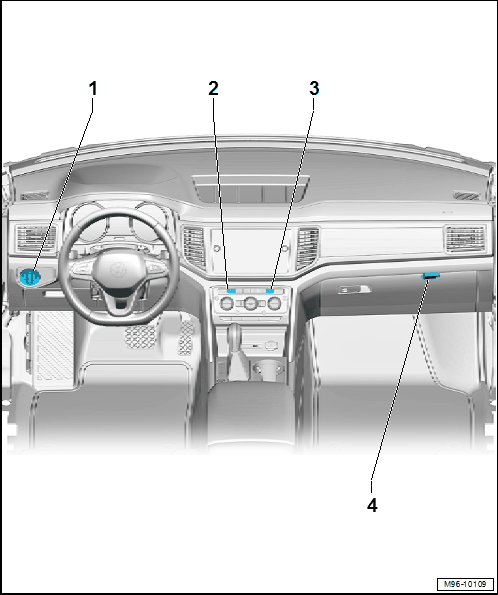

Component Location Overview - Instrument Panel Controls
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Rotary Light Switch -EX1-
- Removing and installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
- Left Seat Heating Button -E653-
- Integrated in the Climatronic/A/C display control head
- Cannot be replaced separately if faulty.
- Display Control Head, Removing and Installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
- Right Seat Heating Button -E654-
- Integrated in the Climatronic/A/C display control head
- Cannot be replaced separately if faulty.
- Display Control Head, Removing and Installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
- Glove Compartment Lamp Switch -E26-
- Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
