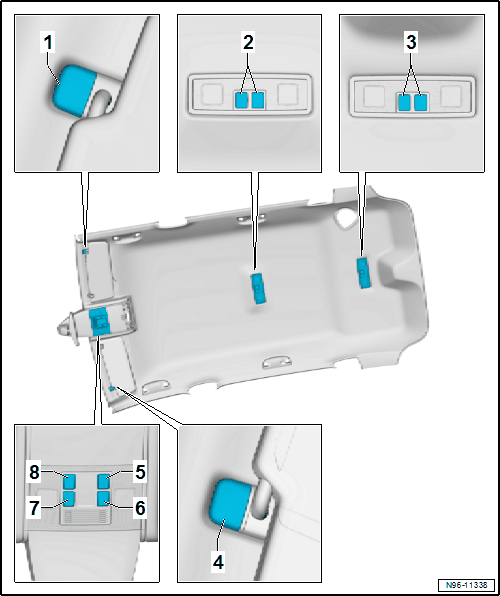

Component Location Overview - Controls In Roof Trim Panel, Vehicles Without Panorama Roof
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Vanity Mirror Lamp Contact Switch -F147-
- The vanity mirror contact switch is located in the sun visor mount and cannot be replaced separately if faulty.
- Removing and installing. Refer to Driver Vanity Mirror Lamp Contact Switch -F147- /Front Passenger Vanity Mirror Lamp Contact Switch -F148-, REMOVING AND INSTALLING .
- Left Rear Reading Lamp Switch -E454- /Right Rear Reading Lamp Switch -E455-
- Installed in the Rear Interior Lamp -WX2-
- Removing and installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Third Row Reading Lamp Button - E696- /Right Third Row Reading Lamp Button - E789-
- Installed in the Interior Lamp -W64-
- Removing and installing. Refer to THIRD ROW INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Passenger Vanity Mirror Lamp Contact Switch -F148-
- The vanity mirror contact switch is located in the sun visor mount and cannot be replaced separately if faulty.
- Removing and installing. Refer to Driver Vanity Mirror Lamp Contact Switch -F147- /Front Passenger Vanity Mirror Lamp Contact Switch -F148-, REMOVING AND INSTALLING .
- Rear Interior Lamp Button -E327-
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to Left Front Reading Lamp Button -E633- /Right Front Reading Lamp Button -E634-, REMOVING AND INSTALLING .
- Right Front Reading Lamp Button -E634-
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to Left Front Reading Lamp Button -E633- /Right Front Reading Lamp Button -E634-, REMOVING AND INSTALLING .
- Left Front Reading Lamp Button -E633-
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Button for Door Opener Illumination
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
