Component Location Overview - Controls In Rear Doors

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

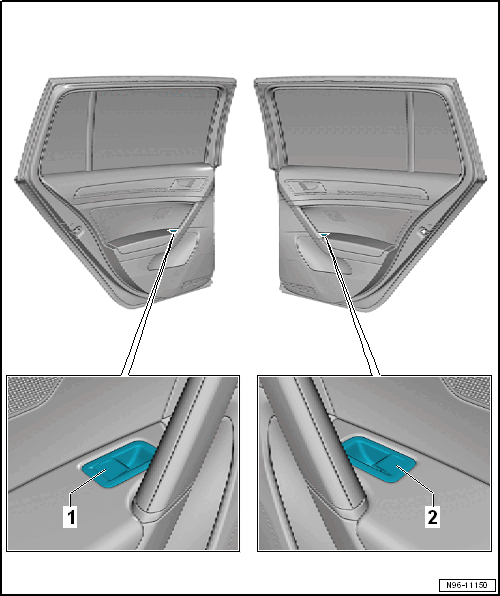

Fig 1: Controls In Rear Doors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Driver Side Rear Power Window Button -E711-
- Removing and installing. Refer to Driver Side Rear Power Window Button -E711- /Passenger Side Rear Power Window Button -E713-, REMOVING AND INSTALLING .
Passenger Side Rear Power Window Button -E713-
- Removing and installing. Refer to Driver Side Rear Power Window Button -E711- /Passenger Side Rear Power Window Button -E713-, REMOVING AND INSTALLING .

Not illustrated:

Left Rear Door Contact Switch -F10- and Right Rear Door Contact Switch -F11-. Refer to Left Rear Door Contact Switch -F10- /Right Rear Door Contact Switch -F11-, REMOVING AND INSTALLING .
