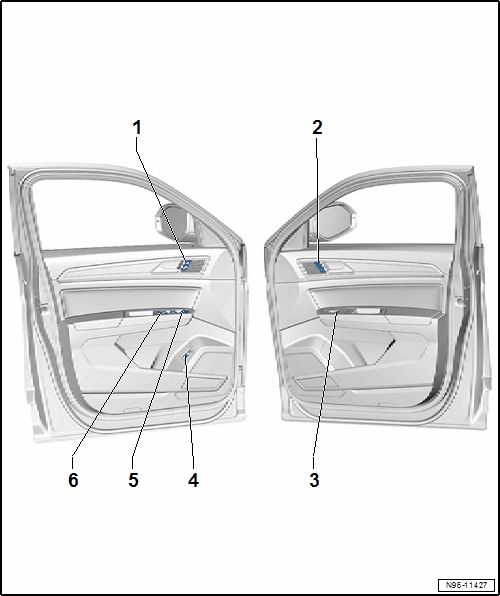

Component Location Overview - Controls In Front Doors
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Interior Locking Button -E308-
- Removing and installing. Refer to Driver Interior Locking Button -E308- /Front Passenger Interior Locking Button -E309-, REMOVING AND INSTALLING .
- Front Passenger Interior Locking Button -E309-
- Removing and installing. Refer to Driver Interior Locking Button -E308- /Front Passenger Interior Locking Button -E309-, REMOVING AND INSTALLING .
- Front Passenger Power Window Button -E716-
- Removing and installing. Refer to Front Passenger Power Window Button -E716-, REMOVING AND INSTALLING .
- Rear Lid Remote Release Button -E233-
- Removing and installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
- Exterior Rearview Mirror Adjuster -EX11-
- Removing and installing. Refer to Exterior Rearview Mirror Adjuster -EX11-, REMOVING AND INSTALLING .
- Power Window Control Head in Driver Door -E512-
- with:
- Driver Power Window Button -E710-
- Front Passenger Power Window Button -E716-
- Driver Side Rear Power Window Button -E711-
- Passenger Side Rear Power Window Button -E713-
- Central Window Regulator Switch in Driver Door -E189-
- Removing and installing. Refer to Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING .
- with:
Not illustrated:
- Driver Door Contact Switch -F2- and Front Passenger Door Contact Switch -F3-. Refer to Driver Door Contact Switch -F2- /Front Passenger Door Contact Switch -F3-, REMOVING AND INSTALLING .
