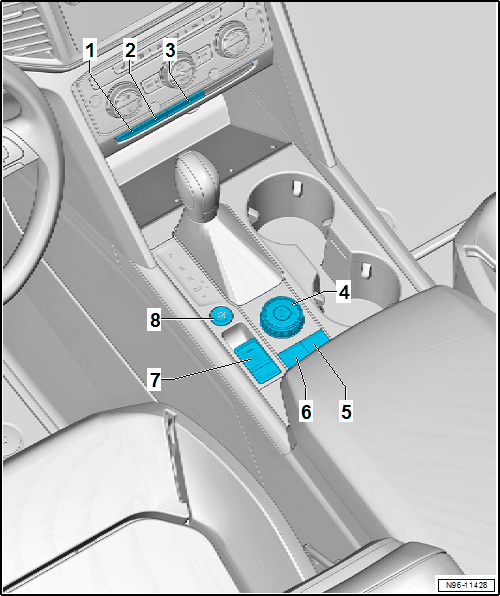

Component Location Overview - Controls In Center Console
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Steering Wheel Heating Button -E522-
- Integrated in the Center Console Switch Module 1 -EX23-
- Center Console Switch Module 1 -EX23-, Removing and Installing. Refer to Center Console Switch Module 1 -EX23-, REMOVING AND INSTALLING .
- Start/Stop Mode Button -E693-
- Integrated in the Center Console Switch Module 1 -EX23-
- Center Console Switch Module 1 -EX23-, Removing and Installing. Refer to Center Console Switch Module 1 -EX23-, REMOVING AND INSTALLING .
- Emergency Flasher Switch -EX3-
- Integrated in the Center Console Switch Module 1 -EX23-
- Center Console Switch Module 1 -EX23-, Removing and Installing. Refer to Center Console Switch Module 1 -EX23-, REMOVING AND INSTALLING .
- Driving Profile Selection Control Head -E881-
- Only installed on AWD vehicles
- Removing and installing. Refer to Driving Profile Selection Control Head -E881-, REMOVING AND INSTALLING .
- Parallel Parking Assistance Button -E581-
- Integrated in the Center Console Switch Module 2 -EX30-
- Center Console Switch Module 2 -EX30-, Removing and Installing. Refer to Center Console Switch Module 2 -EX30-, REMOVING AND INSTALLING .
- Parking Aid Button -E266-
- Integrated in the Center Console Switch Module 2 -EX30-
- Center Console Switch Module 2 -EX30-, Removing and Installing. Refer to Center Console Switch Module 2 -EX30-, REMOVING AND INSTALLING .
- Electromechanical Parking Brake Button -E538- and -AUTO HOLD- Button -E540-
- Removing and installing. Refer to Electromechanical Parking Brake Button -E538- /-Auto Hold- Button -E540-, REMOVING AND INSTALLING .
- Start System Button -E378-
- Removing and installing. Refer to Start System Button -E378-, REMOVING AND INSTALLING .
