Center Console Switch Module 2 -EX30-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.
-- Remove the selector lever handle with shift cover. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

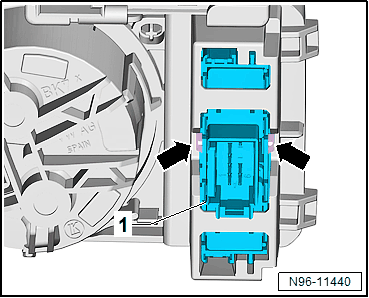

-- Push together the catches -arrows- on the Center Console Switch Module 2 -EX30- -1-.
-- At the same time remove the Center Console Switch Module 2 -EX30- -1- from the shift cover.
