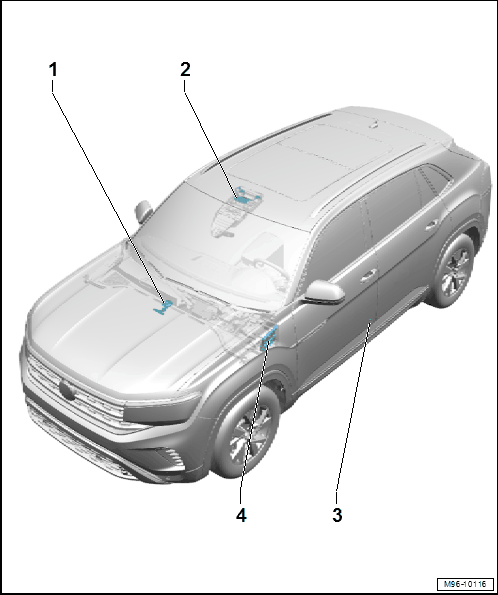

Overview - Interior Monitoring

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Alarm Horn -H12-
- Removing and installing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
Anti-Theft Alarm System Sensor -G578-
- Removing and installing. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .
- Must be parameterized after replacing. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .
Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Removing and installing. Refer to Interior Monitoring and Vehicle Inclination Deactivation Button -E616-, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- With Central Locking and Anti-Theft Alarm System Antenna -R47-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
