Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Front Interior Lamp -WX1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Remove the headliner storage compartment. Refer to HEADLINER STORAGE COMPARTMENT, REMOVING AND INSTALLING .

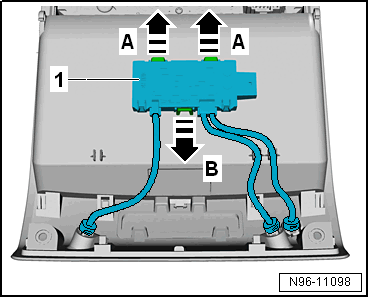

-- Release the mounting tabs in the -direction of the arrow A- and the -direction of the arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Anti-Theft Alarm System Sensor -G578- -1- from the headliner storage compartment.

-- Remove the three individual sensors one after the other from the headliner storage compartment as follows.

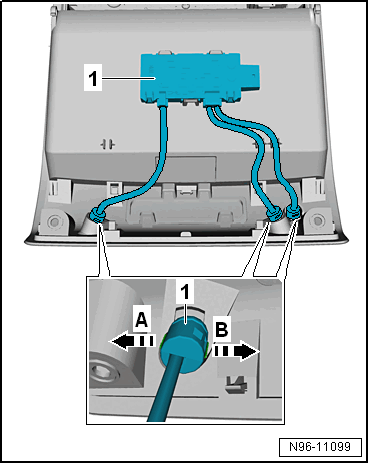

-- Release the mounting tabs in the -direction of the arrow A- and the -direction of the arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the individual sensor -1- from the headliner storage compartment.
