Alarm Horn -H12-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

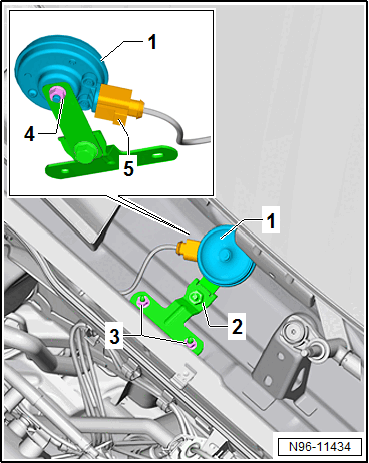

-- Remove the right plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the nuts -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Alarm Horn -H12- -1- with the bracket -2- from the plenum chamber.

-- Release and disconnect the connector -5-.

-- Remove the nut -4-.

-- Remove the Alarm Horn -H12- -1- from the bracket -2-.
