Towing Recognition Control Module -J345-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

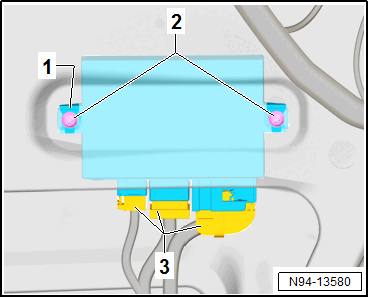

-- Loosen the bolts -2- several turns.
-- Push the Towing Recognition Control Module -J345- -1- slightly upward.
-- Guide the bolts -2- on the Towing Recognition Control Module -J345- -1- outward out of the body panel.
-- Guide the Towing Recognition Control Module -J345- -1- through the opening in the body panel in the luggage compartment.
-- Release and disconnect the connectors -3-.
