Overview - Trailer Hitch Socket

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

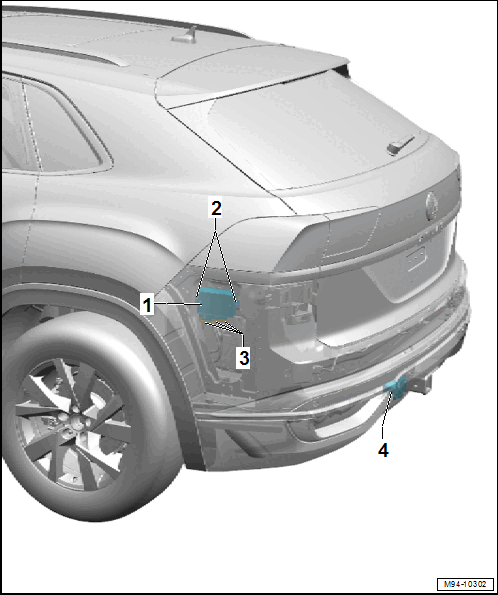

GWWM94-10302Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Towing Recognition Control Module -J345-
  2. Bolt
    • Quantity: 2
    • 2.5 Nm
  3. Connectors
  4. Trailer Socket -U10-
