Rear Lid Tail Lamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch into neutral position.

CAUTION:

Risk of damaging the component surfaces.

When positioning a prying tool, put commercially available adhesive tape, for example, over the component in the visible area.

-- If necessary, position a narrow screwdriver at the side opening.

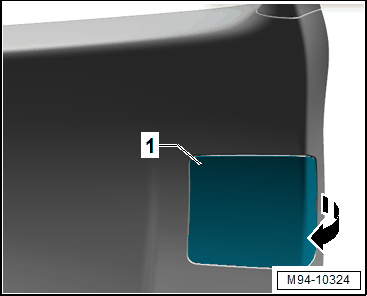

-- Pry up the cover -1- in the -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

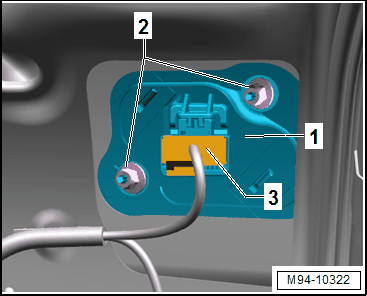

-- Release and disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -2-.

-- Pivot the Left Tail Lamp 2 -MX5- -1- outward out of the rear lid opening.
