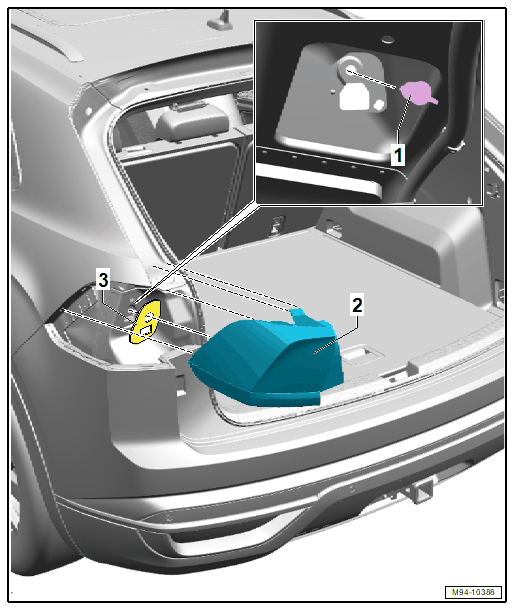

Overview - Body Tail Lamps
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Fastening Element
- As a quick release
- To remove turn 90° (1 /4 turn) and remove
- Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- Removing and installing. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
