Bulb Holder, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the tail lamp from the body. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .

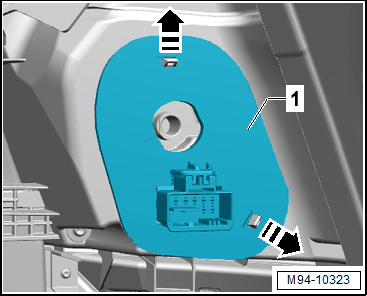

-- Release the catches on the Left Tail Lamp -MX3- in -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time remove the bulb holder -1- from the Left Tail Lamp -MX3- until the connector is accessible.

-- Release and disconnect the connector on the bulb holder -1-.
