Steering Column Combination Switch Base Carrier, Removing And Installing, Vehicles With Electronic Ignition Lock: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the steering column switch module. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .

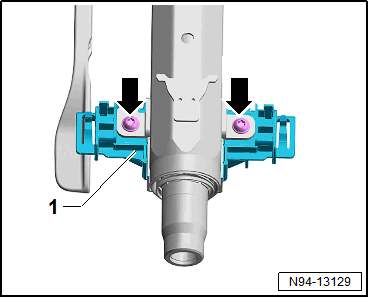

-- Remove the bolts -arrows-.

GWWN94-13129Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the base carrier for the steering column combination switch -1-.
