Overview - Steering Column Switch Module, With Mechanical Ignition Lock

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

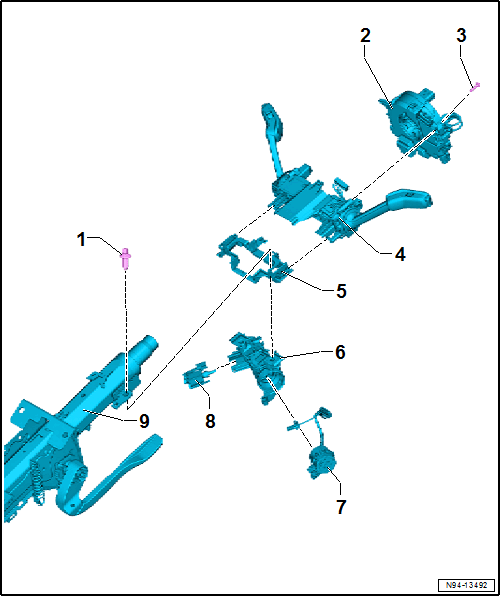

Fig 1: Exploded View Of Steering Column Switch Module With Mechanical Ignition Lock

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- Quantity: 2
- Shear bolts for steering lock housing
Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Removing and installing. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
Bolts
- Quantity: 3
- 1.1 Nm
Steering Column Combination Switch
- With Turn Signal Switch -E2-, Windshield Wiper Intermittent Mode Switch -E22-
- Removing and installing. Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
Base Carrier
- For the steering column combination switch
- Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH BASE CARRIER, REMOVING AND INSTALLING, VEHICLE WITH MECHANICAL IGNITION LOCK .
Steering Lock Housing
- With lock cylinder and Anti-Theft Immobilizer Reader Coil -D2-
- Steering Lock Housing, Removing and Installing. Refer to STEERING LOCK HOUSING, REMOVING AND INSTALLING .
- Lock Cylinder, Removing and Installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
- Anti-Theft Immobilizer Reader Coil -D2-, Removing and Installing. Refer to ANTI-THEFT IMMOBILIZER READER COIL, REMOVING AND INSTALLING, VEHICLE WITH MECHANICAL IGNITION LOCK .
Ignition/Starter Switch -D-
- Removing and installing. Refer to IGNITION/STARTER SWITCH, REMOVING AND INSTALLING .
Ignition Switch Key Lock Solenoid -N376-
- Removing and installing. Refer to Ignition Switch Key Lock Solenoid -N376-, REMOVING AND INSTALLING .
Steering Column
- Overview. Refer to OVERVIEW - STEERING COLUMN .
