Ignition/Starter Switch, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower steering column trim panel. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

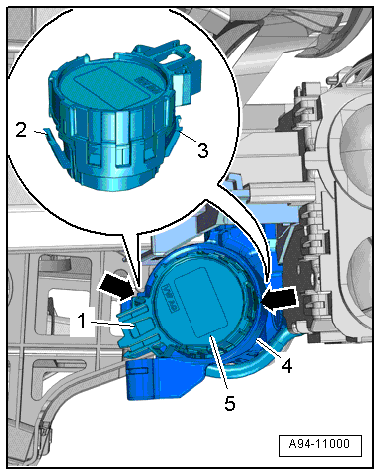

-- Release and disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers -2 and 3- at the openings -arrows- in the steering lock housing -4- by inserting jeweler's screwdrivers.

If the procedure is not possible because there is not enough space, create a tool from two wire hooks as follows.

Fig 1: Identifying Wire Hook Dimensions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Bend the one end of a welding wire to form a 1 mm eye.

-- Cut the welding wire down to the length -a-.

Dimension -a- = approximately 50 mm.

-- File the end of the wire hook into a point.

Dimension -b- = 5 mm.

-- Remove the Ignition/Starter Switch -D- -5- from the steering lock housing. The jeweler's screwdrivers or wire hooks must remain inserted.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
