Anti-Theft Immobilizer Reader Coil, Removing And Installing, Vehicle With Electronic Ignition Lock: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Adjust the steering wheel as far downward and to the rear as possible. To do so, use the entire adjustment range of the steering column adjustment.
-- Remove the lower steering column trim panel. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

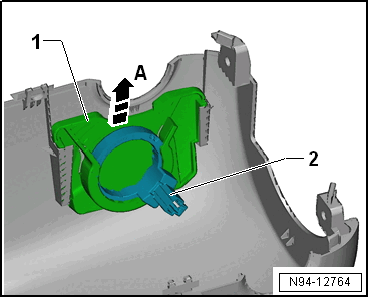

-- Push the reader coil -2- out of the mount -1- in the -direction of the arrow A-.
