High-Mounted Brake Lamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

CAUTION:

Risk of damaging the component surfaces.

When positioning a prying tool, put commercially available adhesive tape, for example, over the component in the visible area.

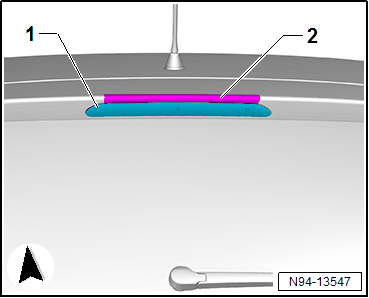

-- Cover the area of the rear lid above the high-mounted brake lamp -1- with a strip of adhesive tape -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

When removing the high-mounted brake lamp, make sure the seal is not damaged.

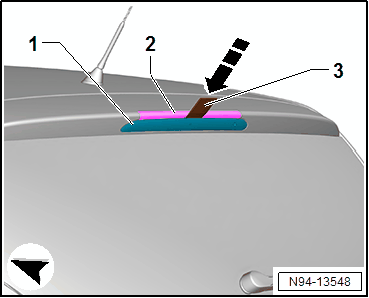

-- Insert the Trim Release Lever - Wedge:T10039/1 -3- at the top between the high-mounted brake lamp -1- and rear lid -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the catch of the high-mounted brake lamp -1- by pressing the plastic wedge -3- in the -direction of the arrow-.

-- Remove the high-mounted brake lamp -1- from the rear lid -2- while paying attention to the connected wiring harnesses.

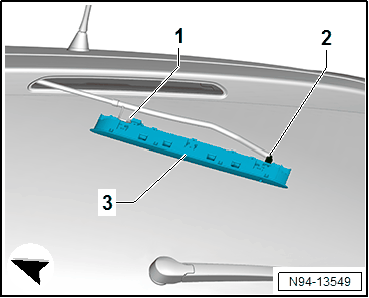

-- Release and remove the washer fluid hose -2- from the high-mounted brake lamp -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the connector -1- from the high-mounted brake lamp -3-.
