Turn Signal Control Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

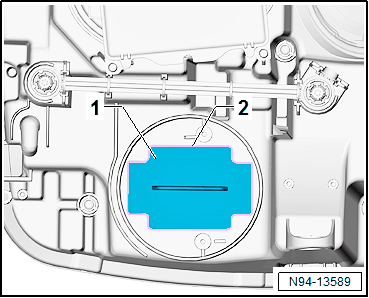

-- Carefully loosen the housing cover -1- along the break line -2- with a hammer.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the housing cover -1- with the control module for the turn signal from the headlamp, until the connectors are accessible.

-- Release and disconnect the connectors from the turn signal control module -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

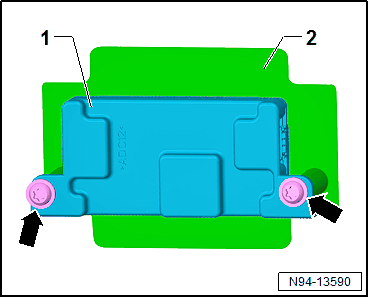

-- Remove the bolts -arrows-.

-- Remove the control module for the turn signal -1- from the housing cover -2-.
