Turn Signal Control Module, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

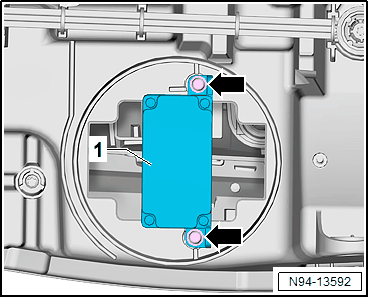

-- Connect the connectors on the turn signal control module -1-.

-- Place the control module for the turn signal -1- on the headlamp.

-- Install and tighten the bolts -arrows-.

CAUTION:

There is a risk of damaging the headlamp.

During installation, ensure proper seating of the housing cover. Water getting in the headlamp will cause damage.

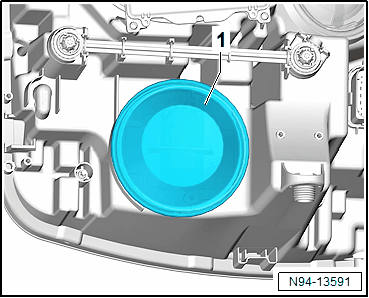

-- Install a new housing cover -1- on the headlamp.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Perform a function test.

-- Check the headlamp adjustment and adjust the headlamp if necessary.
