Right LED Headlamp Power Output Module 1 -A27- /Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

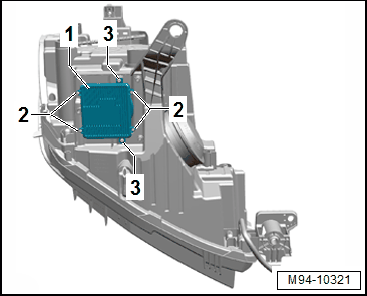

-- Remove the bolts -2-.

-- Remove the bolts -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left LED Headlamp Power Output Module 1 -A31- -1- from the headlamp housing until the connector is accessible.

-- Release and disconnect the connector on the Left LED Headlamp Power Output Module 1 -A31- -1-.

-- Remove the Left LED Headlamp Power Output Module 1 -A31- -1-.
