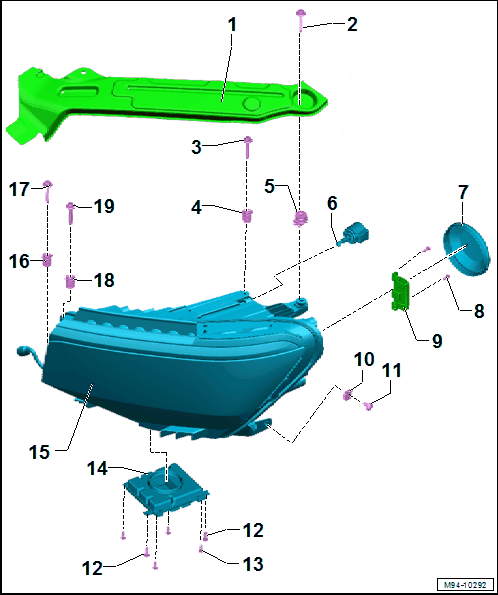

Overview - Headlamps
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Support
- Bolt
- 4 Nm
- Bolt
- 4 Nm
- Banjo Bolt
- For the headlamp height adjustment
- Lifter
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- No replacement part
- Housing Cover
- For the turn signal control module
- Use if a repair is required
- Bolt
- Quantity: 2
- 1.5 Nm
- Left/Right Turn Signal Control Module
- Removing and installing. Refer to TURN SIGNAL CONTROL MODULE, REMOVING AND INSTALLING .
- Spring Nut
- Bolt
- 4 Nm
- Bolt
- Quantity: 2
- 1.5 Nm
- Bolt
- Quantity: 4
- 1.5 Nm
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and installing. Refer to Right LED Headlamp Power Output Module 1 -A27- /Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING .
- Headlamps
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Adjusting. Refer to HEADLAMP, ADJUSTING .
- Banjo Bolt
- For the headlamp height adjustment
- Bolt
- 4 Nm
- Banjo Bolt
- For the headlamp height adjustment
- Bolt
- 4 Nm
