Headlamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

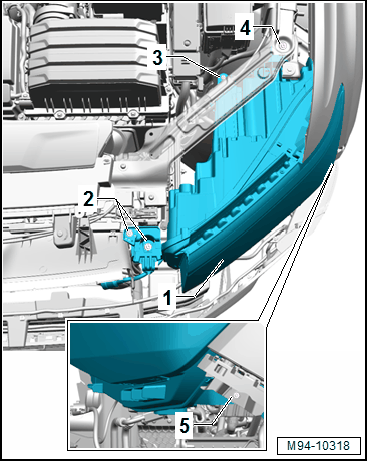

-- Remove the bolts -2-, -3-, -4- and -5-.
-- Release and disconnect the connector on the headlamp -1-.
-- Guide out the headlamp -1- forward.
