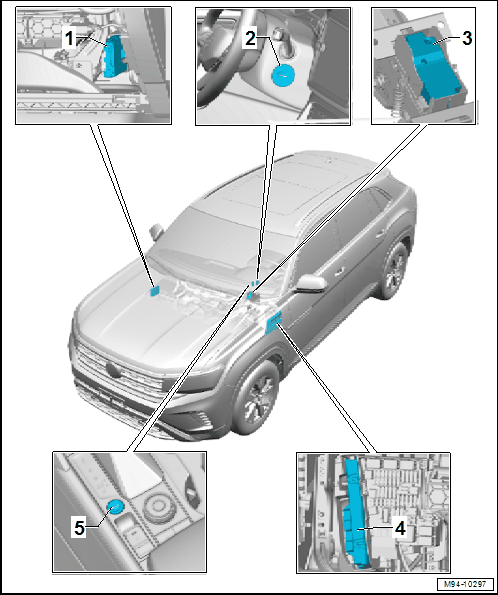

Component Location Overview - Access/Start Authorization System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Access/Start System Interface -J965-
- Removing and installing. Refer to Access/Start System Interface -J965-, REMOVING AND INSTALLING .
- Anti-Theft Immobilizer Reader Coil -D2-
- Removing and installing. Refer to Anti-Theft Immobilizer Reader Coil -D2-, REMOVING AND INSTALLING .
- Electronic Steering Column Lock Control Module -J764-
- Removing and installing. Refer to OVERVIEW - STEERING COLUMN .
- Vehicle Electrical System Control Module -J519-
- With Central Locking and Anti-Theft Alarm System Antenna -R47-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Start System Button -E378-
- Removing and installing. Refer to Start System Button -E378-, REMOVING AND INSTALLING .
