Access/Start System Antenna in Rear Bumper -R136-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

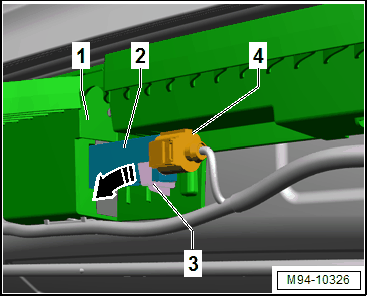

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Release and disconnect the connector -4-.
-- Release the retaining tab -3- in the -direction of arrow-.
-- At the same time remove the Access/Start System Antenna in Rear Bumper -R136- -2- from the center guide -1-.
