Access/Start System Antenna in Luggage Compartment -R137-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left seat from the third row. Refer to SEAT, REMOVING AND INSTALLING .

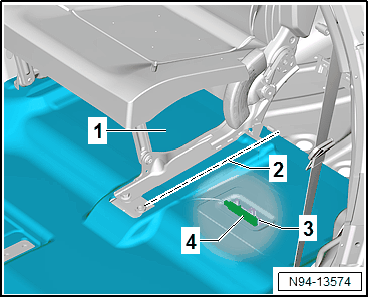

The rear carpet -1- must be cut using a carpet knife as follows, for the accessibility to the Access/Start System Antenna in Luggage Compartment -R137- -4- and the bracket -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut the rear carpet -1- centered over both attachment points for the left seat along the line -2- using a carpet knife.

The cut must be parallel to the third row right seat seat rail.

-- Fold the rear carpet -1- outward.

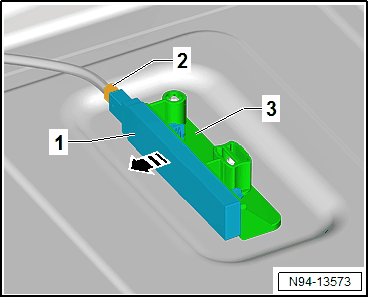

-- Pry the Access/Start System Antenna in Luggage Compartment -R137- -1- using the Pry Lever:80 - 200 in the -direction of the arrow- from the bracket -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -2-.
