Windshield Wiper Motor -V-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Remove the left plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- If equipped, release and disconnect the connector for the windshield defogger.

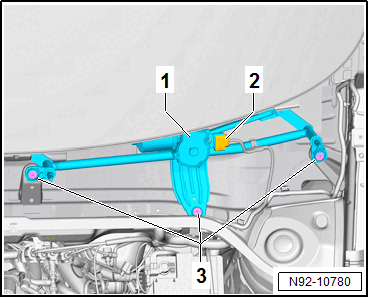

-- Release and disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wiring harness from the windshield wiper frame -1-.

-- Remove the bolts -3-.

-- Guide out the windshield wiper frame -1- with linkage and windshield wiper motor from the plenum chamber.
