Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the wiper arm. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

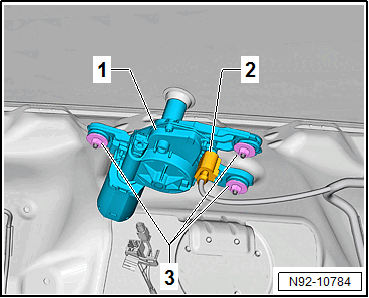

-- Release and disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -3-.

-- Remove the Rear Window Wiper Motor -V12- -1-.
