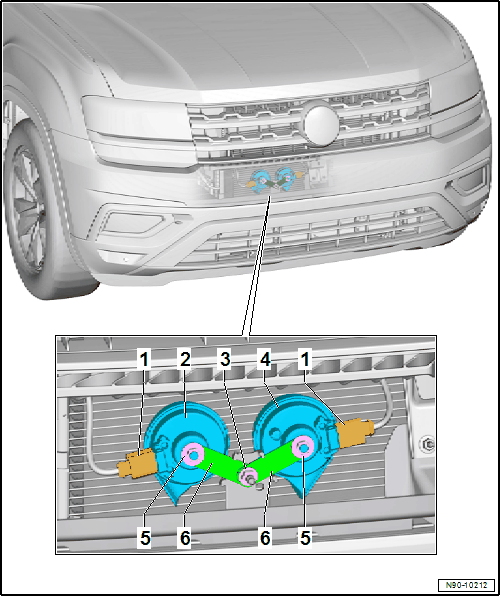

Overview - Horn, Version 1
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- High Tone Horn -H2-
- Installed on the right side
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING, VERSION 1 .
- Nut
- 18 Nm
- Low Tone Horn -H7-
- Installed on the left side
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING, VERSION 1 .
- Nut
- 11 Nm
- Bracket
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING, VERSION 1 .
