Desiccant Bag/Dryer Cartridge, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

NOTE:

Replace the cap, seals and desiccant bag each time the receiver/dryer is opened. Refer to The Parts Information.

-- Using the opening, inspect the receiver/dryer on the condenser for dirt and damage on the threaded- and sealing surfaces.

-- Assemble the plug -A- with the seals -B- and -C-.

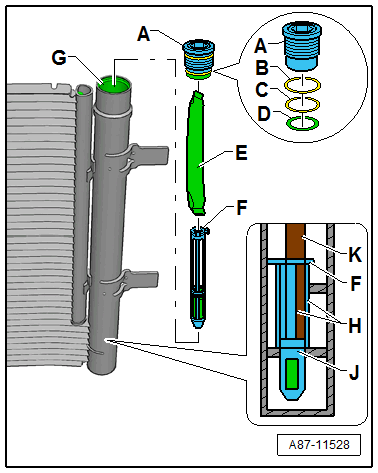

Fig 1: Exploded View Of Dryer Cartridge, Removing & Installing, Showa/Keihin Condenser

Courtesy of AUDI OF AMERICA, LLC

-- Remove the dryer cartridge -E- from the package and insert it into the receiver/dryer.

-- Position and install the plug -A-.

-- Coat the new seals with refrigerant oil before installing the refrigerant line.

CAUTION:

There is a risk of damaging the A/C compressor if the refrigerant circuit is empty.

- Never start the engine with the refrigerant circuit empty.

Vehicles with Refrigerant R134a

-- Fill the refrigerant circuit. Refer to the appropriate Service Information .

-- Perform the leak test on the refrigerant circuit line connections that were closed again. Refer to the appropriate Service Information .

Vehicles with Refrigerant R1234yf

-- Charge the refrigerant circuit. Refer to WORKING WITH A/C SERVICE STATION .

-- Perform the leak test on the closed line connections of the refrigerant circuit. Refer to LEAKS, FINDING .
